TBN

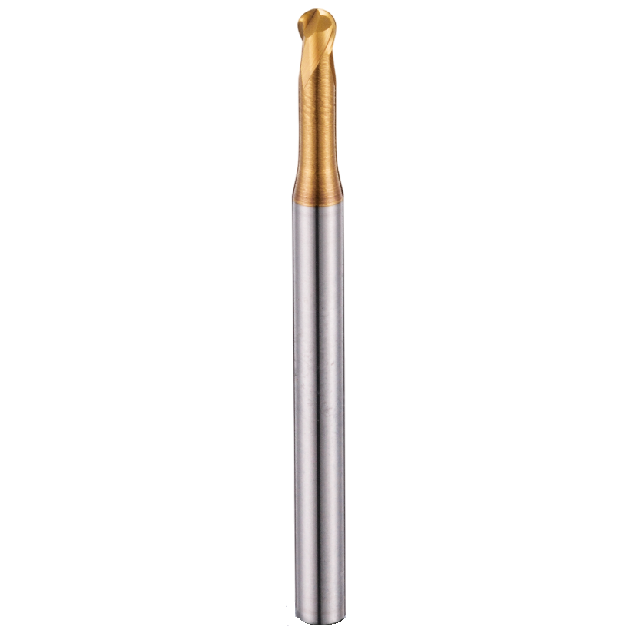

Long Neck Ball Nose End Mill
Features
Specification
| 4 Flutes Item Code | 2 Flutes Item Code | Radius | Flute Length | Effective Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|
| TBN4T0405006050 | TBN2T0405006050 | R0.50 | 1.0 | 6 | 50 | 4 |
| TBN4T0405008050 | TBN2T0405008050 | R0.50 | 1.0 | 8 | 50 | 4 |
| TBN4T0405010050 | TBN2T0405010050 | R0.50 | 1.0 | 10 | 50 | 4 |
| TBN4T0405012050 | TBN2T0405012050 | R0.50 | 1.0 | 12 | 50 | 4 |
| TBN4T0405008075 | TBN2T0405008075 | R0.75 | 1.5 | 8 | 50 | 4 |
| TBN4T0405012075 | TBN2T0405012075 | R0.75 | 1.5 | 12 | 50 | 4 |
| TBN4T0405016075 | TBN2T0405016075 | R0.75 | 1.5 | 16 | 50 | 4 |
| TBN4T0405020075 | TBN2T0405020075 | R0.75 | 1.5 | 20 | 50 | 4 |
| TBN4T0405008080 | TBN2T0405008080 | R0.80 | 1.6 | 8 | 50 | 4 |
| TBN4T0405012080 | TBN2T0405012080 | R0.80 | 1.6 | 12 | 50 | 4 |
| TBN4T0405016080 | TBN2T0405016080 | R0.80 | 1.6 | 16 | 50 | 4 |
| TBN4T0405008100 | TBN2T0405008100 | R1.00 | 2.0 | 8 | 50 | 4 |
| TBN4T0405012100 | TBN2T0405012100 | R1.00 | 2.0 | 12 | 50 | 4 |
| TBN4T0405016100 | TBN2T0405016100 | R1.00 | 2.0 | 16 | 50 | 4 |
| TBN4T0405020100 | TBN2T0405020100 | R1.00 | 2.0 | 20 | 50 | 4 |
| TBN4T0605008150 | TBN2T0605008150 | R1.50 | 3.0 | 8 | 50 | 6 |
| TBN4T0605010150 | TBN2T0605010150 | R1.50 | 3.0 | 10 | 50 | 6 |
| TBN4T0605016150 | TBN2T0605016150 | R1.50 | 3.0 | 16 | 50 | 6 |
| TBN4T0607510200 | TBN2T0607510200 | R2.00 | 4.0 | 10 | 75 | 6 |
| TBN4T0607515200 | TBN2T0607515200 | R2.00 | 4.0 | 15 | 75 | 6 |
| TBN4T0607520200 | TBN2T0607520200 | R2.00 | 4.0 | 20 | 75 | 6 |
| TBN4T0607525200 | TBN2T0607525200 | R2.00 | 4.0 | 25 | 75 | 6 |
| TBN4T0607530200 | TBN2T0607530200 | R2.00 | 4.0 | 30 | 75 | 6 |
