HCN

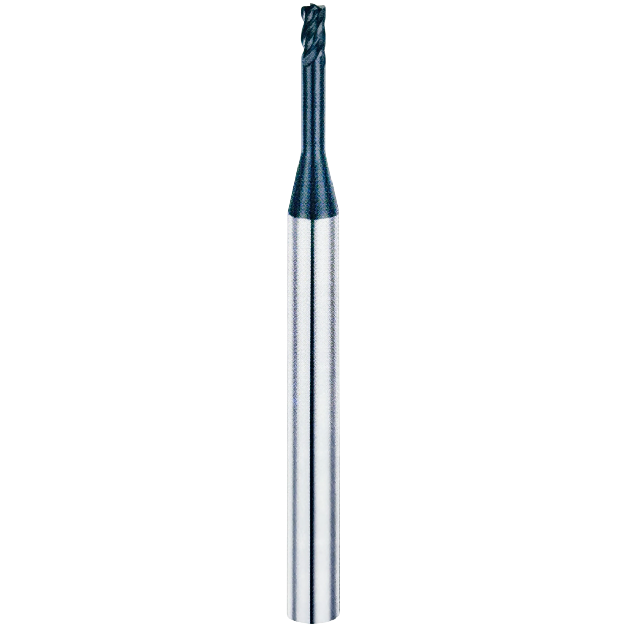

Long Neck Corner Radius End Mill
Features
Specification
| 4 Flutes Item Code | 2 Flutes Item Code | Diameter | Circular Bead | Flute Length | Effective Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|---|
| HCN4T04100401 | HCN2T04100401 | 1.0 | 0.1R | 1 | 4 | 50 | 4 |
| HCN4T04100601 | HCN2T04100601 | 1.0 | 0.1R | 1 | 6 | 50 | 4 |
| HCN4T04100801 | HCN2T04100801 | 1.0 | 0.1R | 1 | 8 | 50 | 4 |
| HCN4T04101001 | HCN2T04101001 | 1.0 | 0.1R | 1 | 10 | 50 | 4 |
| HCN4T04150402 | HCN2T04150402 | 1.5 | 0.2R | 1.5 | 4 | 50 | 4 |
| HCN4T04150602 | HCN2T04150602 | 1.5 | 0.2R | 1.5 | 6 | 50 | 4 |
| HCN4T04150802 | HCN2T04150802 | 1.5 | 0.2R | 1.5 | 8 | 50 | 4 |
| HCN4T04151002 | HCN2T04151002 | 1.5 | 0.2R | 1.5 | 10 | 50 | 4 |
| HCN4T04151202 | HCN2T04151202 | 1.5 | 0.2R | 1.5 | 12 | 50 | 4 |
| HCN4T04200802 | HCN2T04200802 | 2.0 | 0.2R | 2 | 8 | 50 | 4 |
| HCN4T04201002 | HCN2T04201002 | 2.0 | 0.2R | 2 | 10 | 50 | 4 |
| HCN4T04201202 | HCN2T04201202 | 2.0 | 0.2R | 2 | 12 | 50 | 4 |
| HCN4T04201602 | HCN4T04201602 | 2.0 | 0.2R | 2 | 16 | 50 | 4 |
| HCN4T06300802 | HCN2T06300802 | 3.0 | 0.2R | 3 | 8 | 50 | 6 |
| HCN4T06301002 | HCN2T06301002 | 3.0 | 0.2R | 3 | 10 | 50 | 6 |
| HCN4T06301202 | HCN2T06301202 | 3.0 | 0.2R | 3 | 12 | 50 | 6 |
| HCN4T06301602 | HCN2T06301602 | 3.0 | 0.2R | 3 | 16 | 50 | 6 |
| HCN4T06302002 | HCN4T06302002 | 3.0 | 0.2R | 3 | 20 | 50 | 6 |
