HC

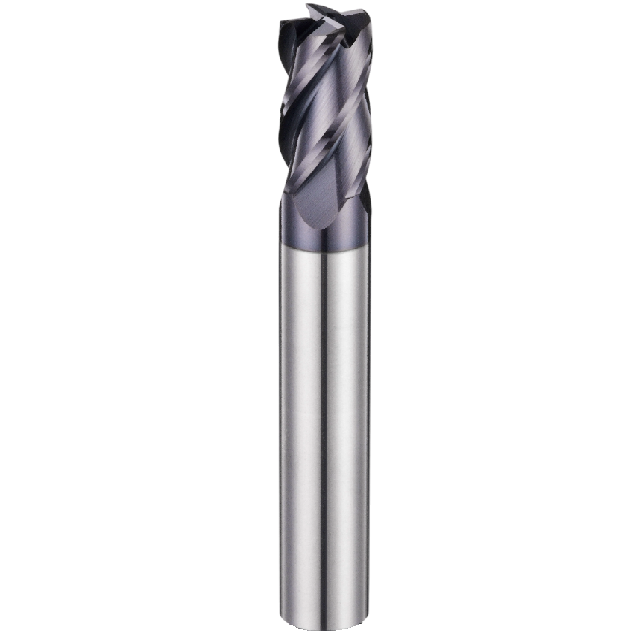

Corner Radius End Mill
Features
Specification
| 4 Flutes Item Code | 2 Flutes Item Code | Diameter | Circular Bead | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|
| HC4T0401002 | HC2T0401002 | 1.0 | 0.2R | 2 | 50 | 4 |
| HC4T0402002 | HC2T0402002 | 2.0 | 0.2R | 4 | 50 | 4 |
| HC4T0402005 | HC2T0402005 | 2.0 | 0.5R | 4 | 50 | 4 |
| HC4T0403002 | HC2T0403002 | 3.0 | 0.2R | 6 | 50 | 4 |
| HC4T0403005 | HC2T0403005 | 3.0 | 0.5R | 6 | 50 | 4 |
| HC4T0403010 | HC2T0403010 | 3.0 | 1.0R | 6 | 50 | 4 |
| HC4T0404002 | HC2T0404002 | 4.0 | 0.2R | 8 | 50 | 4 |
| HC4T0404005 | HC2T0404005 | 4.0 | 0.5R | 8 | 50 | 4 |
| HC4T0404010 | HC2T0404010 | 4.0 | 1.0R | 8 | 50 | 4 |
| HC4T0605005 | HC2T0605005 | 5.0 | 0.5R | 10 | 50 | 6 |
| HC4T0605010 | HC2T0605010 | 5.0 | 1.0R | 10 | 50 | 6 |
| HC4T0606002 | HC2T0606002 | 6.0 | 0.2R | 12 | 50 | 6 |
| HC4T0606005 | HC2T0606005 | 6.0 | 0.5R | 12 | 50 | 6 |
| HC4T0606010 | HC2T0606010 | 6.0 | 1.0R | 12 | 50 | 6 |
| HC4T0606015 | HC2T0606015 | 6.0 | 1.5R | 12 | 50 | 6 |
| HC4T0606020 | HC2T0606020 | 6.0 | 2.0R | 12 | 50 | 6 |
| HC4T0808005 | HC2T0808005 | 8.0 | 0.5R | 16 | 60 | 8 |
| HC4T0808010 | HC2T0808010 | 8.0 | 1.0R | 16 | 60 | 8 |
| HC4T0808015 | HC2T0808015 | 8.0 | 1.5R | 16 | 60 | 8 |
| HC4T0808020 | HC2T0808020 | 8.0 | 2.0R | 16 | 60 | 8 |
| HC4T1010005 | HC2T1010005 | 10.0 | 0.5R | 20 | 75 | 10 |
| HC4T1010010 | HC2T1010010 | 10.0 | 1.0R | 20 | 75 | 10 |
| HC4T1010015 | HC2T1010015 | 10.0 | 1.5R | 20 | 75 | 10 |
| HC4T1010020 | HC2T1010020 | 10.0 | 2.0R | 20 | 75 | 10 |
| HC4T1010025 | HC2T1010025 | 10.0 | 2.5R | 20 | 75 | 10 |
| HC4T1010030 | HC2T1010030 | 10.0 | 3.0R | 20 | 75 | 10 |
| HC4T1212005 | HC2T1212005 | 12.0 | 0.5R | 24 | 75 | 12 |
| HC4T1212010 | HC2T1212010 | 12.0 | 1.0R | 24 | 75 | 12 |
| HC4T1212015 | HC2T1212015 | 12.0 | 1.5R | 24 | 75 | 12 |
| HC4T1212020 | HC2T1212020 | 12.0 | 2.0R | 24 | 75 | 12 |
| HC4T1212025 | HC2T1212025 | 12.0 | 2.5R | 24 | 75 | 12 |
| HC4T1212030 | HC2T1212030 | 12.0 | 3.0R | 24 | 75 | 12 |
