HB

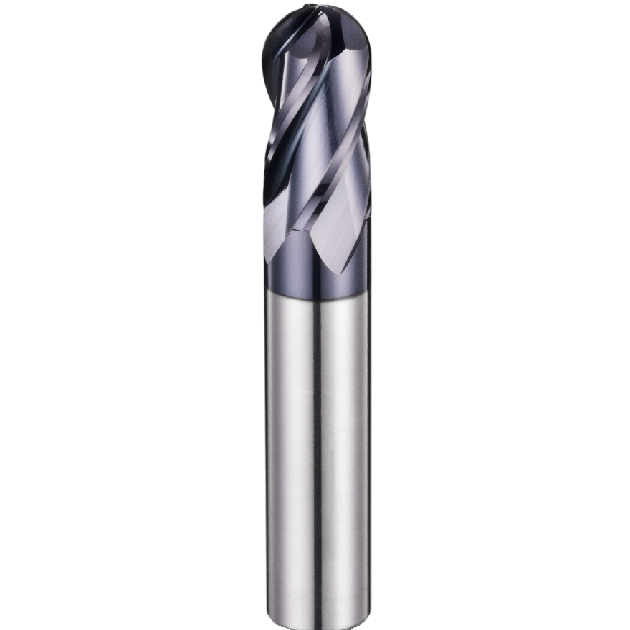

Ball Nose End Mill
Features
Specification
| 4 Flutes Item Code | 2 Flutes Item Code | Radius | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|
| HB4T04050005 | HB2T04050005 | R0.50 | 2.0 | 50 | 4 |
| HB4T04050007 | HB2T04050007 | R0.75 | 3.0 | 50 | 4 |
| HB4T04050010 | HB2T04050010 | R1.00 | 4.0 | 50 | 4 |
| HB4T04050012 | HB2T04050012 | R1.25 | 5.0 | 50 | 4 |
| HB4T03050015 | HB2T03050015 | R1.50 | 6.0 | 50 | 3 |
| HB4T04050015 | HB2T04050015 | R1.50 | 6.0 | 50 | 4 |
| HB4T04050020 | HB2T04050020 | R2.00 | 8.0 | 50 | 4 |
| HB4T06050025 | HB2T06050025 | R2.50 | 10.0 | 50 | 6 |
| HB4T06050030 | HB2T06050030 | R3.00 | 12.0 | 50 | 6 |
| HB4T08060035 | HB2T08060035 | R3.50 | 12.0 | 60 | 8 |
| HB4T08060040 | HB2T08060040 | R4.00 | 16.0 | 60 | 8 |
| HB4T10075045 | HB2T10075045 | R4.50 | 18.0 | 75 | 10 |
| HB4T10075050 | HB2T10075050 | R5.00 | 20.0 | 75 | 10 |
| HB4T12075060 | HB2T12075060 | R6.00 | 24.0 | 75 | 12 |
| HB4T16100080 | HB2T16100080 | R8.00 | 32.0 | 100 | 16 |
| HB4T20100100 | HB2T20100100 | R10.0 | 40.0 | 100 | 20 |
