TCK

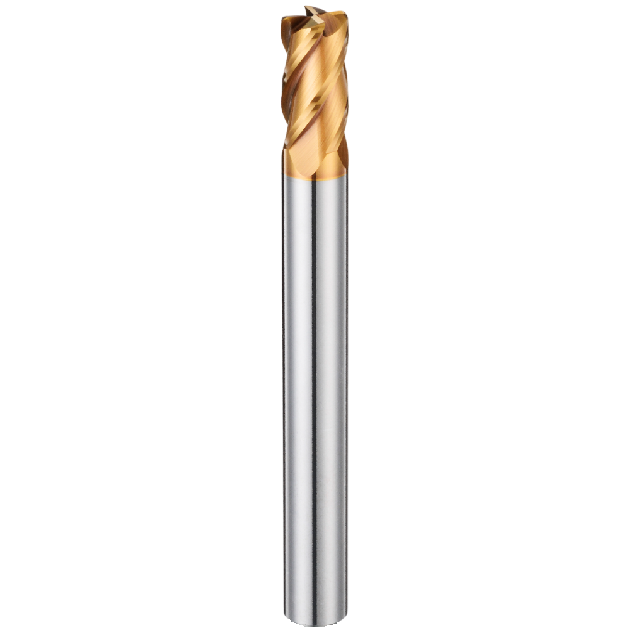

長柄型圓鼻立銑刀 [高硬度]
特點介紹
產品規格
| 4刃-產品編號 | 2刃-產品編號 | 刀徑 | 圓角 | 刃長 | 全長 | 柄徑 |
|---|---|---|---|---|---|---|
| TCK4T0403002 | TCK2T0403002 | 3.0 | 0.2R | 6 | 75 | 4 |
| TCK4T0403005 | TCK2T0403005 | 3.0 | 0.5R | 6 | 75 | 4 |
| TCK4T0403010 | TCK2T0403010 | 3.0 | 1.0R | 6 | 75 | 4 |
| TCK4T0404002 | TCK2T0404002 | 4.0 | 0.2R | 8 | 75 | 4 |
| TCK4T0404005 | TCK2T0404005 | 4.0 | 0.5R | 8 | 75 | 4 |
| TCK4T0404010 | TCK2T0404010 | 4.0 | 1.0R | 8 | 75 | 4 |
| TCK4T0605005 | TCK2T0605005 | 5.0 | 0.5R | 10 | 75 | 6 |
| TCK4T0605010 | TCK2T0605010 | 5.0 | 1.0R | 10 | 75 | 6 |
| TCK4T0606002 | TCK2T0606002 | 6.0 | 0.2R | 12 | 75 | 6 |
| TCK4T0606005 | TCK2T0606005 | 6.0 | 0.5R | 12 | 75 | 6 |
| TCK4T0606010 | TCK2T0606010 | 6.0 | 1.0R | 12 | 100 | 6 |
| TCK4T0606015 | TCK2T0606015 | 6.0 | 1.5R | 12 | 100 | 6 |
| TCK4T0606020 | TCK2T0606020 | 6.0 | 2.0R | 12 | 100 | 6 |
| TCK4T0808005 | TCK2T0808005 | 8.0 | 0.5R | 16 | 75 | 8 |
| TCK4T0808010 | TCK2T0808010 | 8.0 | 1.0R | 16 | 75 | 8 |
| TCK4T0808015 | TCK2T0808015 | 8.0 | 1.5R | 16 | 100 | 8 |
| TCK4T0808020 | TCK2T0808020 | 8.0 | 2.0R | 16 | 100 | 8 |
| TCK4T1010005 | TCK2T1010005 | 10.0 | 0.5R | 20 | 100 | 10 |
| TCK4T1010010 | TCK2T1010010 | 10.0 | 1.0R | 20 | 100 | 10 |
| TCK4T1010015 | TCK2T1010015 | 10.0 | 1.5R | 20 | 100 | 10 |
| TCK4T1010020 | TCK2T1010020 | 10.0 | 2.0R | 20 | 100 | 10 |
| TCK4T1010030 | TCK2T1010030 | 10.0 | 3.0R | 20 | 100 | 10 |
| TCK4T1212005 | TCK2T1212005 | 12.0 | 0.5R | 24 | 100 | 12 |
| TCK4T1212010 | TCK2T1212010 | 12.0 | 1.0R | 24 | 100 | 12 |
| TCK4T1212015 | TCK2T1212015 | 12.0 | 1.5R | 24 | 100 | 12 |
| TCK4T1212020 | TCK2T1212020 | 12.0 | 2.0R | 24 | 100 | 12 |
| TCK4T1212030 | TCK2T1212030 | 12.0 | 3.0R | 24 | 100 | 12 |
