HBN

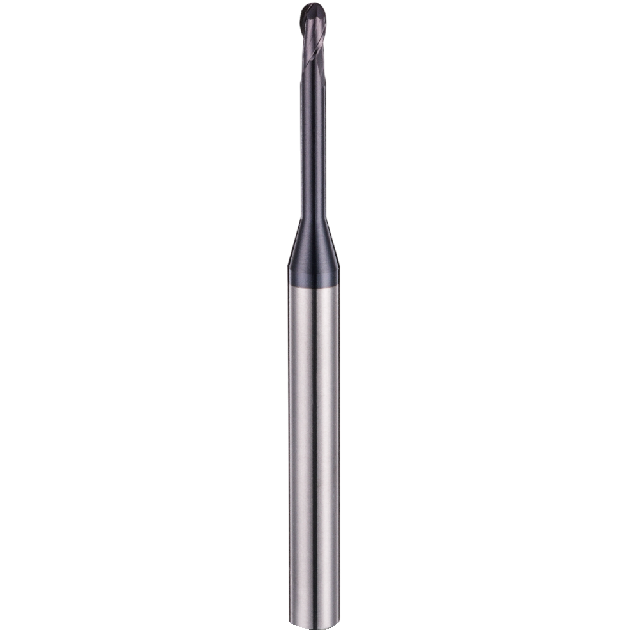

長頸短刃型球型銑刀 [深溝用]
特點介紹
產品規格
| 4刃-產品編號 | 2刃-產品編號 | R值 | 刃長 | 有效長 | 全長 | 柄長 |
|---|---|---|---|---|---|---|
| HBN4T0405006050 | HBN2T0405006050 | R0.50 | 1.0 | 6 | 50 | 4 |
| HBN4T0405008050 | HBN2T0405008050 | R0.50 | 1.0 | 8 | 50 | 4 |
| HBN4T0405010050 | HBN2T0405010050 | R0.50 | 1.0 | 10 | 50 | 4 |
| HBN4T0405012050 | HBN2T0405012050 | R0.50 | 1.0 | 12 | 50 | 4 |
| HBN4T0405008075 | HBN2T0405008075 | R0.75 | 1.5 | 8 | 50 | 4 |
| HBN4T0405012075 | HBN2T0405012075 | R0.75 | 1.5 | 12 | 50 | 4 |
| HBN4T0405016075 | HBN2T0405016075 | R0.75 | 1.5 | 16 | 50 | 4 |
| HBN4T0405020075 | HBN2T0405020075 | R0.75 | 1.5 | 20 | 50 | 4 |
| HBN4T0405008080 | HBN2T0405008080 | R0.80 | 1.6 | 8 | 50 | 4 |
| HBN4T0405012080 | HBN2T0405012080 | R0.80 | 1.6 | 12 | 50 | 4 |
| HBN4T0405016080 | HBN2T0405016080 | R0.80 | 1.6 | 16 | 50 | 4 |
| HBN4T0405008100 | HBN2T0405008100 | R1.00 | 2.0 | 8 | 50 | 4 |
| HBN4T0405012100 | HBN2T0405012100 | R1.00 | 2.0 | 12 | 50 | 4 |
| HBN4T0405016100 | HBN2T0405016100 | R1.00 | 2.0 | 16 | 50 | 4 |
| HBN4T0405020100 | HBN2T0405020100 | R1.00 | 2.0 | 20 | 50 | 4 |
| HBN4T0605008150 | HBN2T0605008150 | R1.50 | 3.0 | 8 | 50 | 6 |
| HBN4T0605010150 | HBN2T0605010150 | R1.50 | 3.0 | 10 | 50 | 6 |
| HBN4T0605016150 | HBN2T0605016150 | R1.50 | 3.0 | 16 | 50 | 6 |
| HBN4T0607510200 | HBN2T0607510200 | R2.00 | 4.0 | 10 | 75 | 6 |
| HBN4T0607515200 | HBN2T0607515200 | R2.00 | 4.0 | 15 | 75 | 6 |
| HBN4T0607520200 | HBN2T0607520200 | R2.00 | 4.0 | 20 | 75 | 6 |
| HBN4T0607525200 | HBN2T0607525200 | R2.00 | 4.0 | 25 | 75 | 6 |
| HBN4T0607530200 | HBN2T0607530200 | R2.00 | 4.0 | 30 | 75 | 6 |
